6135E Utility Tractor

6135E Utility Tractor

Make:
John Deere
Model:
6135E Utility Tractor
  • Engine HP: 137 Max | 135 Rated
  • John Deere FT4 PowerTech™ engine combines performance and fluid economy
  • 12/12 or 24/12 hi-lo PowrReverser™ transmission
  • Cab, 2WD or MFWD
  • 15 degrees of seat swivel with optional air-ride seat
Specifications
Engine descriptionJohn Deere PowerTech™ PWS (B20 Diesel Compatible)
Engine displacement4.5 L275 cu in.
Rated engine power97/68EC: 99 kW135 engine hp
Rated PTO power (hp SAE)86 kW115 PTO hp
Transmission typeStandard: John Deere12F/12R PowrReverser™ Transmission: 30 km/h19 mphOptional: John Deere 24F/12R PowrReverser Transmission 40 km/h25 mph
Hydraulic pump rated output36.5 cc pump: 75.7 L/min20 gpm
Rear hitch category (SAE designation)Standard: Category 2: 2500 kg (5500 lb) standard lift at 610mm behind hitchpointOptional: Category 2: 3318 kg (7300 lb) heavy duty lift at 610mm behind hitchpoint
DescriptionJohn Deere PowerTech™ PWS (B20 Diesel Compatible)
Engine typeDiesel, in-line, 4-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine familyHJDXLO6.8302
Rated speed2200 rpm
AspirationTurbocharge, wastegate Turbocharger with air to air aftercooling and cooled exhaust gas recirculation
Emission levelFinal Tier 4
After treatment typeDOC/DPF/SCR
Displacement4.5 L275 cu in.
Rated power97/68EC: 99 kW135 engine hp
Rated PTO power (hp SAE)86 kW115 PTO hp
Engine peak torqueAt 1,600 rpm: 539 Nm397 lb-ft
PTO torque rise30 percent
TypeStandard: John Deere12F/12R PowrReverser™ Transmission: 30 km/h19 mphOptional: John Deere 24F/12R PowrReverser Transmission 40 km/h25 mph
TypeOpen-centerGear driven
Pump rated output36.5 cc pump: 75.7 L/min20 gpm
Available flow at a single rear SCV75.7 L/min20 gpm
Number of rear selective control valves (SCVs)Standard: ISO Couplers 2Optional: ISO Couplers 3
SCV controlMechanical
Hitch category (SAE designation)Standard: Category 2: 2500 kg (5500 lb) standard lift at 610mm behind hitchpointOptional: Category 2: 3318 kg (7300 lb) heavy duty lift at 610mm behind hitchpoint
Maximum lift capacity behind lift pointsCategory 2: with heavy duty lift: 3318 kg7300 lb
Sensing typeOptional
Drawbar categoryStandard: Category 2Optional: Category 2 heavy duty
Maximum vertical loadStandard: Category 2: 1000-1250 kg2205-2756 lbOptional: Category 2 heavy duty 1200-1900 kg2645-4189 lbMaximum vertical load dependent on drawbar position
TypeIndependentStandard: 35mm (1.375 in) 540 rpm/1000 rpm reversible shaft
Engine rpm (at rated PTO speeds)2085 engine rpm at 540 rpm PTO2067 engine rpm at 1000 rpm PTO
TypeFlange
Final drive typeInboard planetary
Rear differential lockFull-locking mechanical
TypeStandard: MFWD
Front axle differential lock2WD: NoneMFWD: limited slip
Wheel tread rangeMFWD: 1516-2016 mm59.7-79.4 in.
Alternator size90 amp
Battery options12 V
Total cold cranking amps925 CCA
SeatStandard: Mechanical suspension cloth seatOptional: Air suspension
Instructional seatOptional
DisplayLCD instrument cluster
WheelbaseMFWD: 2450 mm96.5 in.
Approximate shipping weight, Open;CabMFWD Cab: 4645 kg10,240 lb
Maximum ballast level6464 kg14250 lb
Crankcase oil volume15 L4 U.S. gal.
Fuel tank168 L44.4 U.S. gal.
Cooling systemOpen station: 18.6 L4.7 U.S. gal.Cab: 19.1 L5 U.S. gal.
Transmission-hydraulic system58 L15.3 U.S. gal.
Interval for engine oil change500 hours
Interval for hydraulic/transmission oil change1,000 hours
Interval for engine coolant change5,000 hours
Country of manufactureMexico

Similar Products

5067E Utility Tractors

5067E Utility Tractors

2WD or MFWD 5-year Powertrain warranty* Available in premium cab, sta...
5065E Utility Tractor

5065E Utility Tractor

67 engine hp Best-in-class visibility Thick comfortable seat 5-Year ...

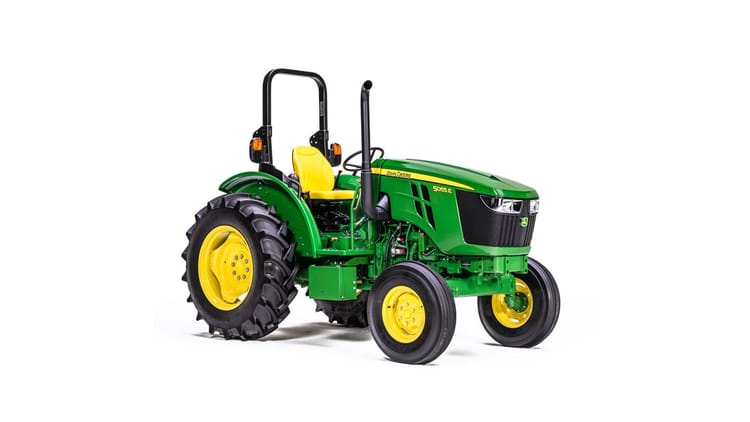

5055E Utility Tractor

5055E Utility Tractor

59 engine hp Best-in-class visibility Thick comfortable seat 5-Year P...

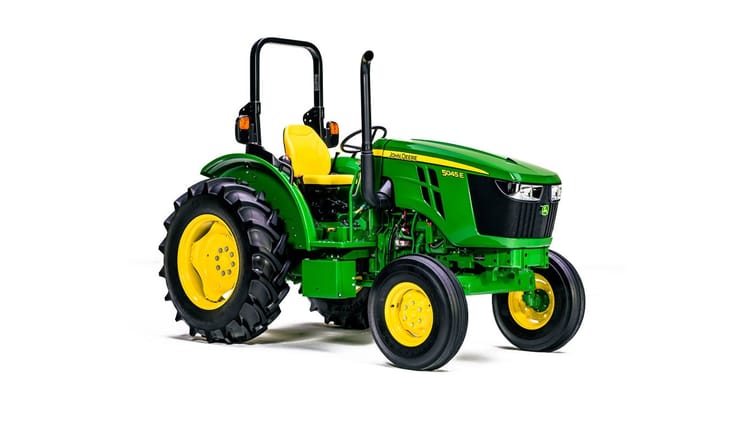

5045E Utility Tractor
