<ul>
<li>50 engine hp</li>
<li>Best-in-class visibility</li>
<li>Thick comfortable seat</li>
<li>5-Year Powertrain Warranty</li>
</ul>


5045e-utility-tractor

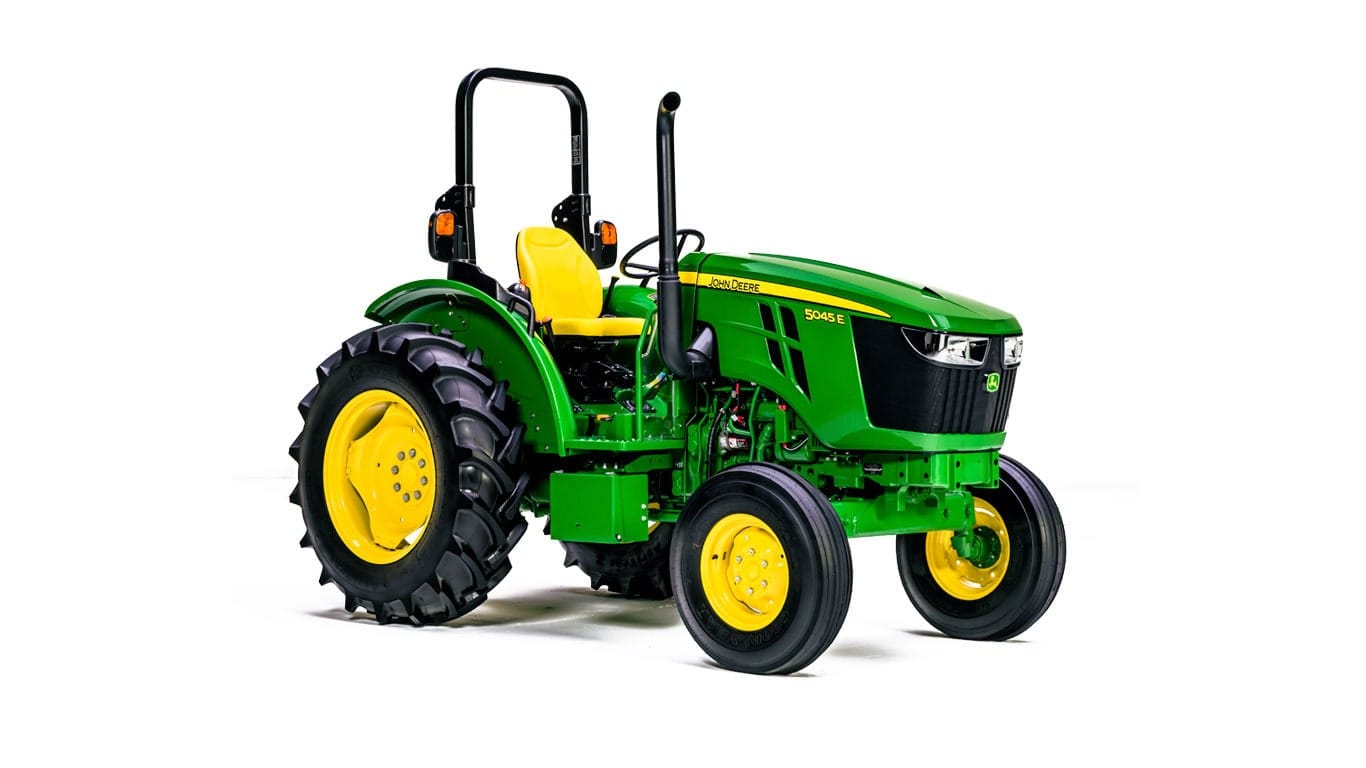

5045E Utility Tractor

Agriculture

<ul>
<li>AutoConnect™ deck compatible for deck attach/detach in seconds</li>
<li>Cab or Open Station configuration available</li>
<li>PowrReverser™ or E-hydro transmission with Twin Touch™ pedals</li>
</ul>


3039R Compact Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 125 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5125r-tractor

5125R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 115 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5115r-tractor

5115R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 100 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5100r-tractor

5100R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 90 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5090r-tractor

5090R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>PowrQuad PLUS 16F/16R or Powr8 32F/16R transmission options</li>
<li>Climate-controlled cab</li>
<li>Hitch lift capacity of 6,970 lbs. with an option of 7,860 lbs.</li>
<li>Integrated AutoTrac™ guidance</li>
</ul>


5115m-powrquad-pluspowr8-utility-tractor

5115M Utility Tractor

<div class="key_features"><strong class="text_large">Key Features</strong></p>
<ul>
<li>PowrQuad PLUS 16F/16R or Powr8 32F/16R transmission options</li>
<li>Climate-controlled cab</li>
<li>Hitch lift capacity of 6,970 lbs. with an option of 7,860 lbs.</li>
<li>Integrated AutoTrac™ guidance</li>
</ul>
</div>


5100m-powrquad-pluspowr8-utility-tractor

5100M Utility Tractor

<ul>
<li>PowrQuad PLUS 16F/16R or Powr8 32F/16R transmission options</li>
<li>Climate-controlled cab</li>
<li>Hitch lift capacity of 6,970 lbs. with an option of 7,860 lbs.</li>
<li>Integrated AutoTrac™ guidance</li>
</ul>


5090m-powrquad-pluspowr8-utility-tractor

5090M Utility Tractor

<ul>
<li>2WD or MFWD</li>
<li>5-year Powertrain warranty*</li>
<li>Available in premium cab, standard cab or open operator station</li>
<li>No Regen required</li>
</ul>


5067E Utility Tractors

<div class="key_features">
<ul>
<li>67 engine hp</li>
<li>Best-in-class visibility</li>
<li>Thick comfortable seat</li>
<li>5-Year Powertrain Warranty</li>
</ul>
</div>
<p><a class="no_show_m btn btn-larger btn-primary btn-product btn-raq various" href="https://www.agprocompanies.com/new-equipment/agriculture/tractors/5-series-tractors/small-frame/5065e-utility-tractor/#inquire">REQUEST A QUOTE</a></p>


5065e-utility-tractor

5065E Utility Tractor

E Series Tractors

<ul>
<li>59 engine hp</li>
<li>Best-in-class visibility</li>
<li>Thick comfortable seat</li>
<li>5-Year Powertrain Warrant</li>
</ul>


5055e-utility-tractor

5055E Utility Tractor

<ul>
<li>Engine HP: 122 Max | 120 Rated</li>
<li>John Deere FT4 PowerTech™ engine combines performance and fluid economy</li>
<li>12/12 or 24/12 hi-lo PowrReverser™ transmission</li>
<li>Cab, open station, 2WD or MFWD</li>
<li>15 degrees of seat swivel with optional air-ride seat</li>
</ul>


6120E Utility Tractor

5075E Utility Tractor

<ul>
<li>Engine HP: 106 Max | 105 Rated</li>
<li>John Deere FT4 PowerTech™ engine combines performance and fluid economy</li>
<li>12/12 or 24/12 hi-lo PowrReverser™ transmission</li>
<li>Cab, open station, 2WD or MFWD</li>
<li>15 degrees of seat swivel with optional air-ride seat</li>
</ul>


6105E Utility Tractor

<ul>
<li>Engine HP: 137 Max | 135 Rated</li>
<li>John Deere FT4 PowerTech™ engine combines performance and fluid economy</li>
<li>12/12 or 24/12 hi-lo PowrReverser™ transmission</li>
<li>Cab, 2WD or MFWD</li>
<li>15 degrees of seat swivel with optional air-ride seat</li>
</ul>


6135E Utility Tractor

<ul>
<li>John Deere PowerTech™ Diesel Engine with FT4 emissions compliance</li>
<li>Standard 12F/12R PowrReverser™ Transmission and MFWD only</li>
<li>Standard cab or open operator station available</li>
<li>1000 RPM PTO dealer-installed option available</li>
</ul>


5100E Utility Tractor

John Deere

<ul>
<li>Mow up to 2 acres</li>
<li>23 HP* (17 kW) V-Twin engine</li>
<li>48- and 54-in. (122- and 137 cm) forged Accel Deep™ Mower Decks available</li>
<li>20-inch (50.8 cm) high-back custom-tailored seat with arm rests</li>
<li>LED lights, floor mat, front bumper, rear hitch, covered storage come standard</li>
<li>3-year/200-hour bumper-to-bumper warranty**</li>
</ul>


Z330R ZTrak™ Mower with 48-in. Deck

<ul>
<li>Mow up to 2 acres</li>
<li>23 HP* (17 kW) V-Twin engine</li>
<li>48- and 54-in. (122- and 137 cm) forged Accel Deep™ Mower Decks available</li>
<li>20-inch (50.8 cm) high-back custom-tailored seat and standard rear hitch</li>
<li>3-year/200-hour bumper-to-bumper warranty**</li>
</ul>


Z330M ZTrak™ Mower with 48-in. Deck

<ul>
<li>48-inch (122-cm) floating mower deck</li>
<li>Powerful 19 hp (14.2 kW) V-twin engine</li>
<li>Self-propelled hydrostatic drive system</li>
<li>Easy-to-use controls for operator comfort and convenience</li>
</ul>


W48R Commercial Walk-Behind Mower

Rippers

Semi-Mounted Rotary Rakes

Horizontal Fold Disc Mowers

Front Mounted Disc Mowers

Professional-Duty Roadside Mowers

Vari-Manager Series

Vertical Fold Disc Mowers

Landscape and Estate Shredders

Trailed Round Bale Wrappers

Trailed Square Bale Wrappers

Tractors

View Product Brochure

<p>Operator comfort is important regardless of the application. Improving the 5E 3-Cylinder Tractor models, the hand throttle has been relocated to the right-hand console. This is 30.5 cm (12-in.) closer to the operator and within easy reach versus the previous location on the center-hand console. Operators may also notice the additional legroom provided by the repositioned loader controls, providing a more enjoyable experience.</p>


Intuitive controls to aide in simple operation

<h5>NINE FORWARD AND THREE REVERSE SPEEDS WITH IN-LINE SYNCHRONIZED SHUTTLE SHIFTING</h5>
<div class="seccion-images"></div>
<p>The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. Transmission durability is enhanced with the pressure-lubricated top shaft, allowing an operator to achieve performance from one working season to the next. Additionally, this in-base transmission is configured with fixed draft links, single-speed power take-off (PTO) and mechanical PTO engagement.</p>
<p>&nbsp;</p>
<p>The transmission is characterized as full top shaft synchronized (TSS) when forward shifting on-the-go between speeds, and is characterized a synchronized while depressing the clutch.</p>
<p>&nbsp;</p>
<table class="table table-striped table-bordered">
<tbody>
<tr>
<td colspan="3"><strong>2100 engine rpm</strong></td>
</tr>
<tr>
<td></td>
<td></td>
<td><strong>16.9-28</strong></td>
</tr>
<tr>
<td></td>
<td>Tire</td>
<td><strong>0.671 RR</strong></td>
</tr>
<tr>
<td><strong>Gear</strong></td>
<td><strong>Rear Wheel Speed</strong></td>
<td><strong>Ground Speed</strong></td>
</tr>
<tr>
<td></td>
<td><strong>rpm</strong></td>
<td><strong>km/h</strong></td>
</tr>
<tr>
<td>A1</td>
<td>9.1</td>
<td>2.3</td>
</tr>
<tr>
<td>A2</td>
<td>12.4</td>
<td>3.1</td>
</tr>
<tr>
<td>A3</td>
<td>17.0</td>
<td>4.3</td>
</tr>
<tr>
<td>A Rev</td>
<td>-13.5</td>
<td>-3.4</td>
</tr>
<tr>
<td>B1</td>
<td>23.1</td>
<td>5.8</td>
</tr>
<tr>
<td>B2</td>
<td>31.4</td>
<td>7.9</td>
</tr>
<tr>
<td>B3</td>
<td>43.2</td>
<td>10.9</td>
</tr>
<tr>
<td>B Rev</td>
<td>-34.2</td>
<td>-8.6</td>
</tr>
<tr>
<td>C1</td>
<td>58.9</td>
<td>14.9</td>
</tr>
<tr>
<td>C2</td>
<td>80.3</td>
<td>20.3</td>
</tr>
<tr>
<td>C3</td>
<td>110.3</td>
<td>27.9</td>
</tr>
<tr>
<td>C Rev</td>
<td>-87.3</td>
<td>-22.1</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<p>Creeper available for R2 and R4 as field installed kit with following speeds in km/h.</p>
<table class="table table-striped table-bordered">
<tbody>
<tr>
<td>Creeper 1</td>
<td>0.40</td>
</tr>
<tr>
<td>Creeper 2</td>
<td>0.54</td>
</tr>
<tr>
<td>Creeper 3</td>
<td>0.75</td>
</tr>
<tr>
<td>Creeper Rev</td>
<td>-0.59</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<p>Nine forward and three reverse (9F/3R) speeds are achieved by using two platform-mounted levers for shift operation. The gear lever at the operator&#8217;s right hand selects one of three forward gears and one reverse gear, as well as the integrated park position. The range lever at the operator&#8217;s left hand selects collar-shift A, B, and C ranges.</p>
<p>Operators can easily switch directions without having to completely stop the tractor with synchronized, in-line, shuttle-shift capability between forward and reverse gears on the gear-shift lever in all three ranges (A, B, and C ranges).</p>
<p>A neutral start switch requires the gear-shift lever be in the neutral or park positions to start the engine.</p>
<p>A positive park pawl on the transmission provides positive park and eliminates the need for a hand brake. This also eliminates clutch service costs that occur when the park brake is accidentally left engaged.</p>


Specifications
Engine description	John Deere PowerTech 3029
Engine displacement	3 cylinders: 2.9 L 179 cu in.
Rated engine power	At 2100 rpm: 37.4 kW 50 hp
Aspiration	Turbocharged
Cylinders liners	Wet sleeved
Rated PTO power (hp SAE)	At 2100 rpm: 27.6 kW (37 PTO)
Maximum PTO power	@ 1800 RPM Open Station: 28.5kw (38hp)
Transmission type	Standard: 9F/3R SyncShuttle
Reverser	No
Clutch; wet/dry	Dry
Hydraulic pump rated output	Standard: 66.1 L/min 17.5 gpm
Available flow at a single rear SCV	43.4 L/min 11.5 gpm
Number of rear selective control valves (SCVs)	standard: 1 Optional: 2
Number of mid selective control valves (SCVs)	Standard: 0 Optional: 2
Joystick SCV control	2WD: FIK MFWD: Standard
Hitch draft control load sense type	Mechanical
Remote control valves available	Standard: 1 Optional: 2
Rear hitch category (SAE designation)	Category 2; convertible to 1
Maximum lift capacity behind lift points	OECD hitch lift cap at 24 behind: 3192 lb 1448 kg
Sensing type	Top link
Rear Power Take-Off (PTO) Type	Standard: Independent 540
Engine rpm (at rated PTO speeds)	540 at 2100 rpm
PTO actuation	Mechanical (lever)
Final drive type	Planetary
Differential controls	Mechanical (pedal)
Axle type	Flanged
Brakes, type and control	Hydraulic wet disc
Front Tires	2WD: 7.5-16 R1 MFWD: 9.5-24 R1
Rear Tires	2WD: 13.6-28 R1 MFWD: 13.6-28 R1
Turning radius with brakes	2WD: 3.1 m 10.2 ft MFWD: 3.94 m 12.9 ft
Turning radius without brakes	2WD: 3.5 m 11.5 ft MFWD: 4.65 m 15.3 ft
Rollover protective structure, OOS	Rigid - foldable - telescopic Foldable, 2-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side
Seat	Mechanical
Wheelbase	2WD and MFWD: 2050 mm 80.7 in.
Overall length	3639 mm 143.3 in.
Approximate shipping weight, Open;Cab	MFWD: 2525 kg 5566 lb
Fuel tank	Standard: 72.5 L 19 U.S. gal.
Country of manufacture	Sub assembly in Pune, India, Final assembly in Augusta, GA
