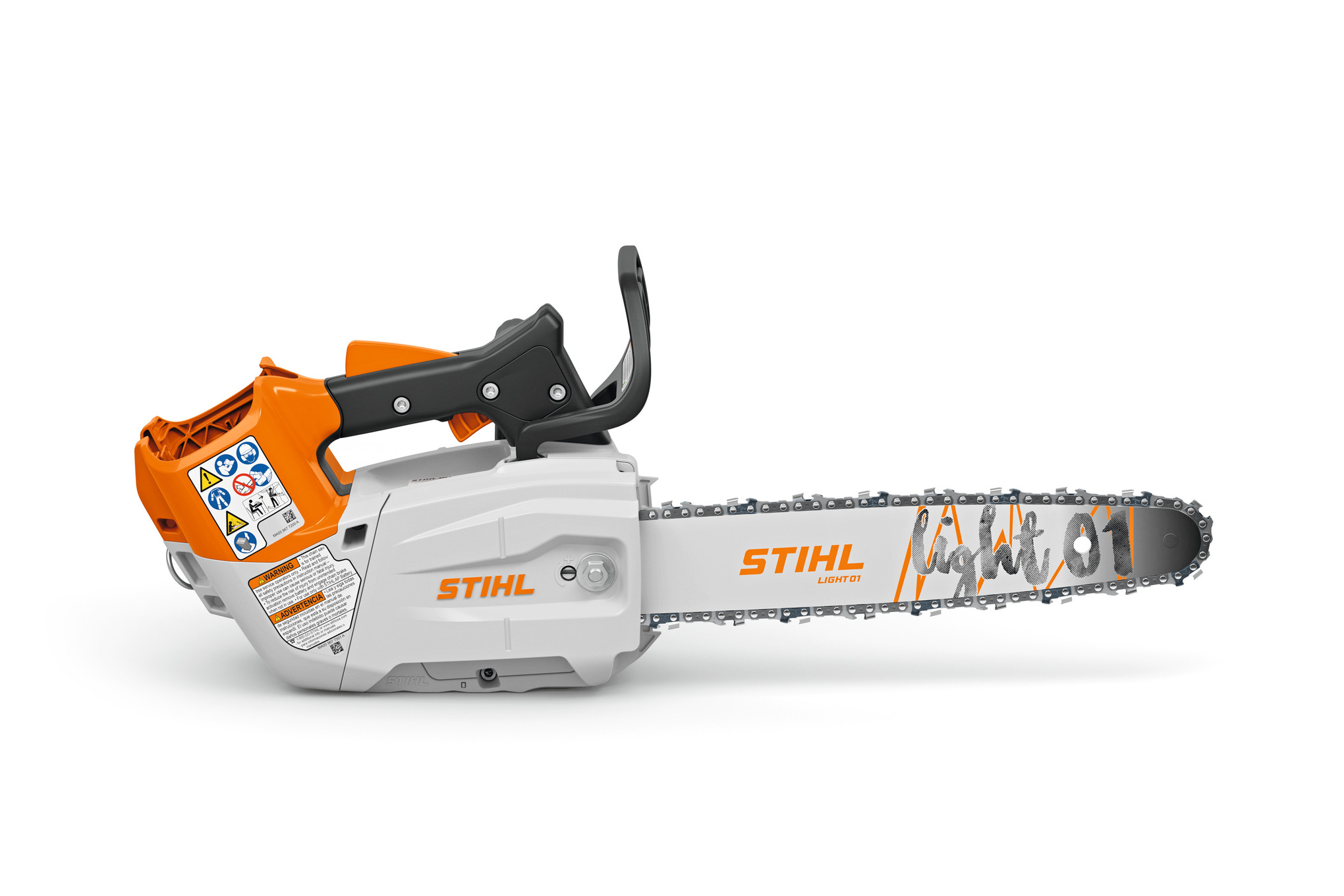

MORE POWER THAN OUR GASOLINE MS 194 T CHAINSAW.

STIHL

MSA 190 T (Unit Only)

Chainsaw

399.99

Specifications

Features

TRANSPARENT OIL TANK

MAKES FILL-LEVEL MONITORING EASY. With the transparent oil tank, you can easily and quickly check the fill level of the chain oil. This means that you always know when you need to add chain oil for efficient work over long periods.

TOOL-FREE FUEL CAP FOR OIL TANKS

QUICK AND EASY TO USE. Thanks to the bayonet closure, you can open and close the tool-free fuel cap in just a few simple steps.

IPX4 CERTIFIED

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides.

POWER BOOST

MAXIMUM PERFORMANCE INCREASE. Thanks to internal intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.

CONSTANT POWER

CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.

SIDE-MOUNTED CHAIN TENSIONING

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

STIHL Quickstop®

STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.

Side Access Chain Tensioner

More convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.

Throttle Trigger Interlock

This safety feature must be depressed before the trigger can be activated.

Toolless and Translucent Bar and Chain Oil Tank

The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.

Variable-Speed Trigger

With the ability to adjust speed depending on the job, the variable-speed trigger allows users to optimize performance and run times.

Max. battery working time AP 100.0 P	20 min
Max. battery working time AP 20	37 min
Max. battery working time AP 200	48 min
Max. battery working time AP 200.0 P	39 min
Max. battery working time AP 200 S	28 min
Max. cuts per battery charge AP 200 S	170 pcs
Max. battery working time AP 30.1	47 min
Max. battery working time AP 30	47 min
Max. battery working time AP 300.0 P	58 min
Max. battery working time AP 300 S	48 min
Max. cuts per battery charge AP 300 S	255 pcs
Max. battery working time AP 500 S	58 min
Max. cuts per battery charge AP 500 S	306 pcs
Power consumption	1.50 kW
Device weight without battery	5.8 lb
Device length with bumper spike	12.0 in
Power	1.6 BHP
Power	1.608 BHP
Max. voltage	40 V
Rated voltage	36 V
Recommended battery	AP 200.0 P
Saw chain pitch	3/8"P
Vibration level left	12.5 ft/s²
Vibration level right	12.8 ft/s²
Cordless power system	ALLPRO/AP
