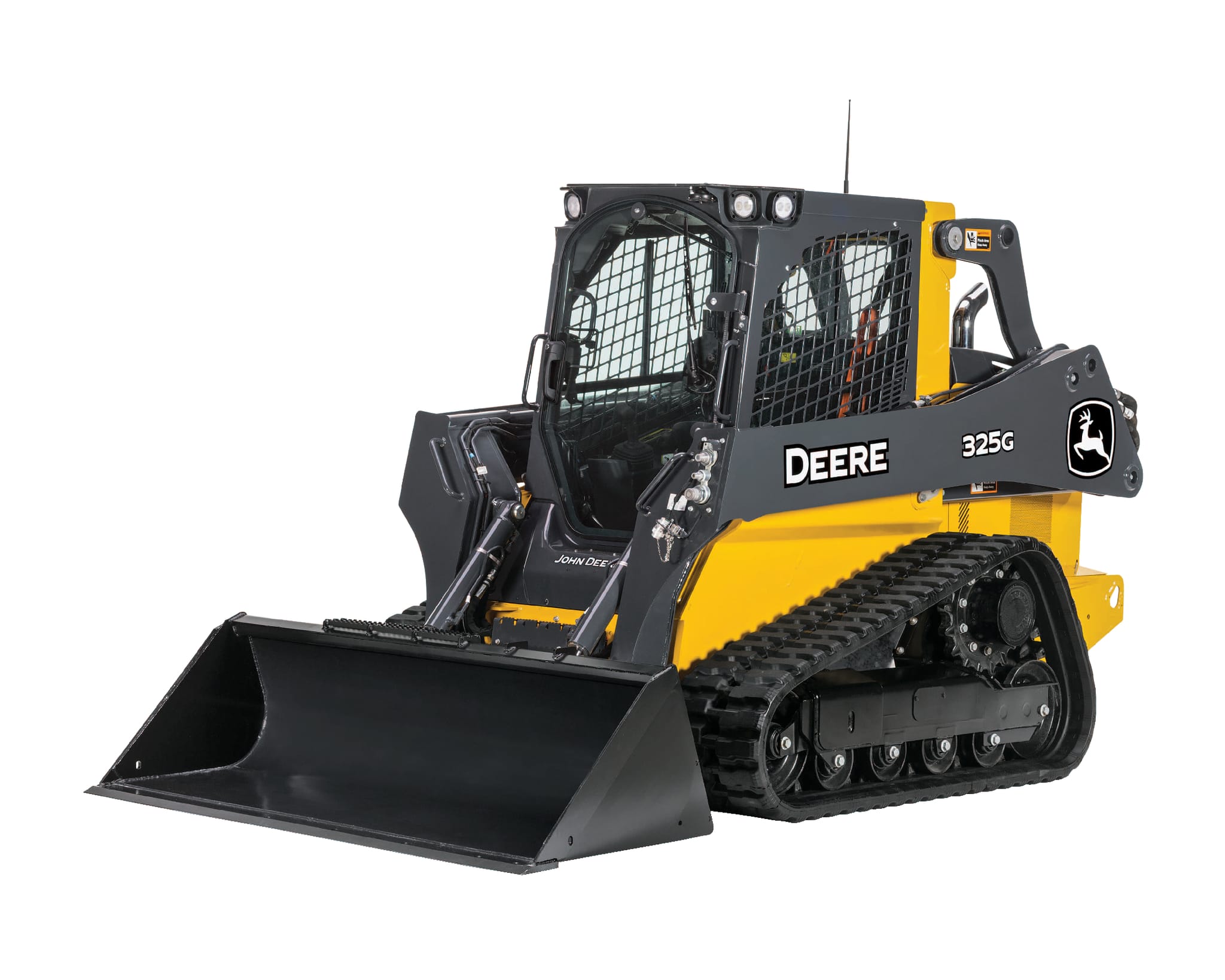

325G Compact Track Loader
Make:
John Deere
Model:
325G Compact Track Loader
- Rated Operating Capacity: 1176 kg (2,590 lb.)
- Gross Horsepower: 54.8 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 4313 kg (9,500 lb.)
Specifications | |
---|---|
Engine Manufacturer | Yanmar |
Engine Model | 4TNV98CT |
Emission Rating | EPA Tier 4 / EU Stage IV |
Aspiration | Turbo |
Displacement, ltr (Inches³) | 3.3 (203) |
Rated Speed, rpm | 2500 |
Engine Output - Net, kW (hp) | 52.5 (70) |
Engine Output - Gross, kW (hp) | 54.8 (74) |
Torque, Nm (lbf / ft) | 280 (207) |
Track Shoe Width, mm (inches) | 320 (12.6) |
Length - No Bucket, mm (inches) | 2850 (112.3) |
Length - Foundry Bucket, mm (inches) | 3460 (136.3) |
Width - No Bucket, mm (inches) | 1820 (71.5) |
Height - Top Of Cab, mm (inches) | 2060 (81.1) |
Ground Clearance, mm (inches) | 240 (9.3) |
Rear Departure Angle, Degrees | 30.5 |
Height to Hinge Pin, mm (inches) | 3200 (126.1) |
Dump Angle, Degrees | 41 |
Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
Rollback - Ground Level, Degrees | 34 |
Rated Operating Capacity - Foundry, kg (lbs) | 1176 (2590) |
Tipping Load - Foundry, kg (lbs) | 3360 (7400) |
Ground Bearing Pressure - Foundry, kPa (PSI) | 39.3 (5.7) |
Speed - Maximum, kph (mph) | 13.2 (8.2) |
Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
Hydraulic Power, kW (hp) | 30.617 (41) |
Hydraulic Power - Option, kW (hp) | 47.103 (63.1) |
Pump Flow, lt/min (gallons (US) / min) | 78 (21) |
Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) |
System Pressure, bar (PSI) | 237.87 (3450) |
