<ul>
<li>Net Power: 17.4 kW (23 hp)</li>
<li>Max Digging Depth: 2.79 m (9 ft. 2 in.)</li>
<li>Operating Weight: 3275 kg (7,220 lb.)</li>
</ul>

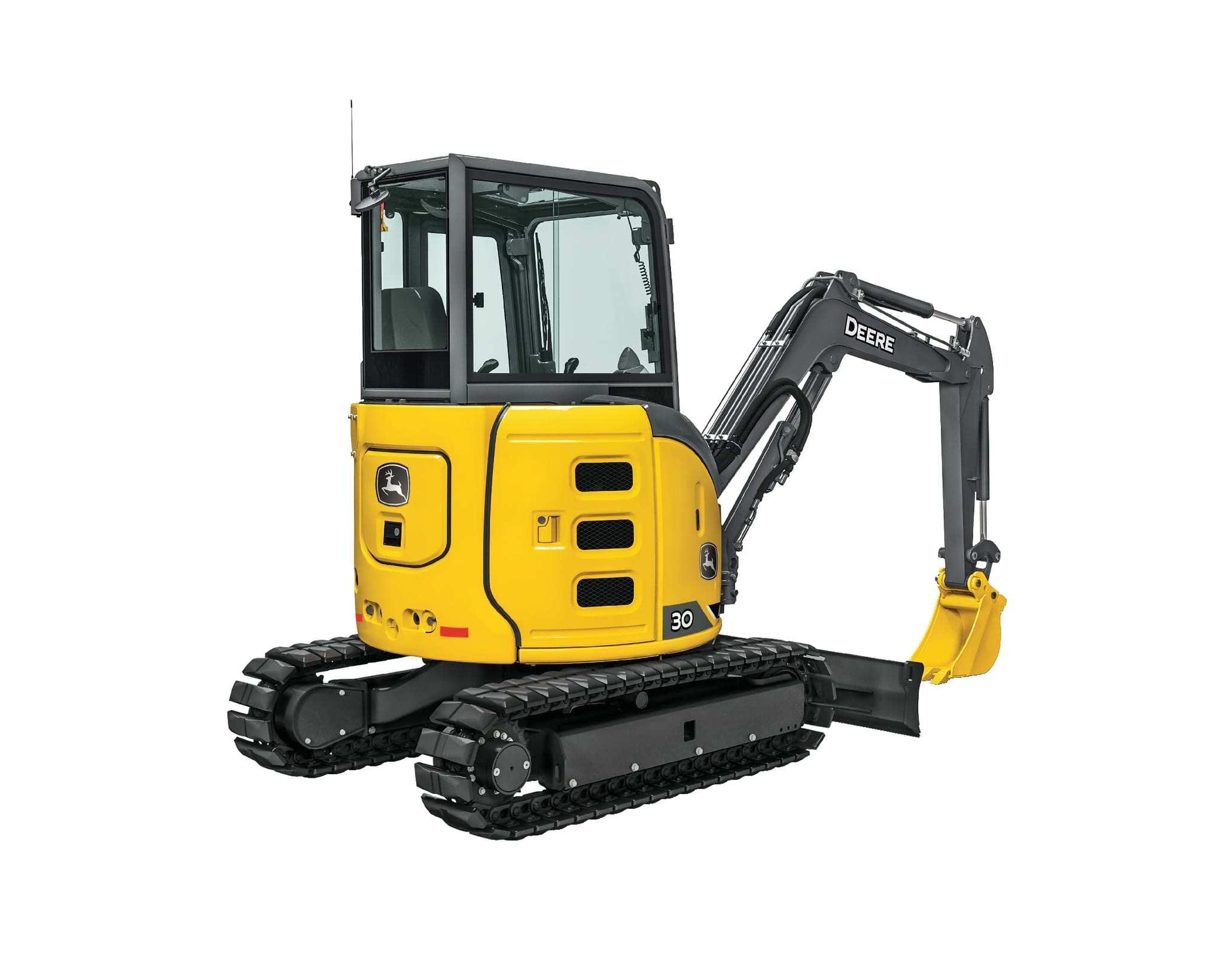

30G Compact Excavator

Compact Excavators

<ul>
<li>Net Power: 17.4 kW (23.3 hp)</li>
<li>Max. Digging Depth: 3.06 m (10 ft. 0 in.)</li>
<li>Operating Weight: 3690 kg (8,135 lb.)</li>
</ul>


35G Compact Excavator

<ul>
<li>Net Power: 26.8 kW (35.9 hp)</li>
<li>Max. Digging Depth: 3.53 m (11 ft. 7 in.)</li>
<li>Operating Weight: 4920 kg (10,847 lb.)</li>
</ul>


50G Compact Excavator

<ul>
<li>Net Power: 14.9 kW (20 hp)</li>
<li>Max. Digging Depth 2.59 m (8 ft. 6 in.)</li>
<li>Operating Weight: 2,770 kg (6,110 lb.)</li>
</ul>


26G Compact Excavator

<ul>
<li>Net Power: 10.8 kW (14.5 hp)</li>
<li>Max. Digging Depth: 2.19 m (7 ft. 2 in.)</li>
<li>Operating Weight: 1720 kg (3,790 lb.) </li>
</ul>


17G Compact Excavator

<ul>
<li>Net Power: 39.6 kW (53 hp)</li>
<li>Max Digging Depth: 3.77 m (12 ft. 4 in.)</li>
<li>Operating Weight: 6180 kg (13,620<br />
lb.)</li>
</ul>


60G Compact Excavator

Construction

<ul>
<li>Rated Operating Capacity: 1362 kg (3,000 lb.)</li>
<li>Gross Horsepower: 68.0 kW (91.2 hp)</li>
<li>Net Horsepower: 66 kW (88.5 hp)</li>
<li>Operating Weight: 4495 kg (9,900 lb.)</li>
</ul>


330G Skid Steer

<ul>
<li>Rated Operating Capacity: 1407 kg (3,100 lb.)</li>
<li>Gross Horsepower: 68.0 kW (91.2 hp)</li>
<li>Net Horsepower: 66.0 kW (88.5 hp)</li>
<li>Operating Weight: 5403 kg (11,900 lb.)</li>
</ul>


331G Compact Track Loader

<ul>
<li>Net Power: 52 kW (71 hp)</li>
<li>Operating Weight: 6400 kg (14,110 lb.)</li>
<li>Bucket Capacity: 0.8–1.6 m<sup>3</sup> (1.0–2.1<br />
cu. yd.)</li>
</ul>


324L Compact Wheel Loader

<ul>
<li>Rated Operating Capacity: 1176 kg (2,590 lb.)</li>
<li>Gross Horsepower: 54.8 kW (74 hp)</li>
<li>Net Horsepower: 52.5 kW (70 net hp)</li>
<li>Operating Weight: 4313 kg (9,500 lb.)</li>
</ul>


325G Compact Track Loader

<ul>
<li>Compatible with 2032R and 2038R tractors</li>
<li>Quik-Park&trade; mounting system for easy on, easy off in minutes</li>
<li>Optional single-point hydraulic coupler connects hydraulics with pull of a lever</li>
<li>Quik-Change&trade; Bucket System for fast and easy attachment changeovers</li>
<li>Mechanical Self-Leveling (MSL) Loader option with 1,377 lb (626 kg) lift capacity</li>
</ul>


220R Loader

<ul>
<li>Net Power: 48 kW (65 hp) @ 2,400 rpm</li>
<li>Operating Weight: 5796 kg (12,778 lb.)</li>
<li>Bucket Capacity: 0.8–1.6 m³ (1.0–2.1 cu. yd.)</li>
</ul>


304L Compact Wheel Loader

<ul>
<li>Automatic Mast Latch for fast implement changeover</li>
<li>Repositioned leveling links for better visibility</li>
<li>Designed for maximum tractor maneuverability</li>
<li>Integrated stands for tool free attachment and removal</li>
</ul>


620R Loader

<ul>
<li>Compatible with 3025D, 3035D, 3043D, 3025E, 3032E, and 3038E</li>
<li>Curved boom design improves operator visibility to front implements</li>
<li>Larger knee plates for strength and durability without sacrificing compact stance</li>
<li>845 lbs (384 kg) of lift capacity</li>
<li>Mechanical Self-Leveling (MSL) Loader option with 1,283 lb (583 kg) lift capacity</li>
</ul>


300E Loader

Excavators

Government and Military Solutions

<ul>
<li>Top of the line heavy duty work vehicle</li>
<li>Diesel toughness and durability</li>
<li>Wide stance for enhanced stability</li>
<li>In-store pickup or delivery available</li>
</ul>


TH 6x4 Diesel Traditional Utility Vehicle

TH 6×4 Diesel Traditional Utility Vehicle

<ul>
<li>Premium HVAC cab with light-stone interior</li>
<li>Powerful diesel engine with up to 4,000-lb&nbsp; towing capacity</li>
<li>Cargo box power lift</li>
<li>LED headlights</li>
</ul>


XUV865R Diesel Premium Cab Crossover Utility Vehicle

<ul>
<li>Ultimate HVAC cab with genuine leather seats</li>
<li>7-speaker infotainment system with touchscreen</li>
<li>Rear-facing camera and sliding rear window</li>
<li>Versatile Bumper Pro Brush Guard</li>
</ul>


XUV835R Signature Edition Crossover Utility Vehicle

<ul>
<li>Electronic switch for instant 4WD engagement</li>
<li>New dash display, including fuel gauge</li>
<li>16.4 cu ft (.46 cu m) cargo box with a 1,000 lb (450 kg) capacity</li>
<li>Powerful diesel engine system</li>
</ul>


HPX815E Work Series Utility Vehicle

<ul>
<li>Multi-passenger capability for four people
</li>
<li>Easier shifting, with integrated park position
</li>
<li>Electronic switch for instant 4WD engagement</li>
<li>
Improved power steering for smoother operation</li>
</ul>


XUV825M S4 Crossover Utility Vehicle

<ul>
<li>Three person cockpit with half doors</li>
<li>Power steering with sport steering wheel</li>
<li>Cargo box power lift, brush guard and black alloy wheels</li>
<li>Up to 4,000-lb towing capacity</li>
</ul>


XUV835M Honor Edition Crossover Utility Vehicle

<ul>
<li>Climate-controlled cab with heat and air conditioning</li>
<li>Powerful diesel engine with up to 4,000-lb towing capacity</li>
<li>Power steering</li>
<li>Cargo box with spray-in liner, brake and taillights</li>
</ul>


XUV865M Diesel HVAC Cab Crossover Utility Vehicle

<ul>
<li>Three person cockpit with enhanced dash display</li>
<li>Easier shifting, with integrated park position</li>
<li>Electronic switch for instant 4WD engagement</li>
<li>Up to 4,000-lb towing capacity</li>
</ul>


XUV835E Crossover Utility Vehicle

John Deere

<ul>
<li>Mow up to 2 acres</li>
<li>23 HP* (17 kW) V-Twin engine</li>
<li>48- and 54-in. (122- and 137 cm) forged Accel Deep™ Mower Decks available</li>
<li>20-inch (50.8 cm) high-back custom-tailored seat with arm rests</li>
<li>LED lights, floor mat, front bumper, rear hitch, covered storage come standard</li>
<li>3-year/200-hour bumper-to-bumper warranty**</li>
</ul>


Z330R ZTrak™ Mower with 48-in. Deck

<ul>
<li>Mow up to 2 acres</li>
<li>23 HP* (17 kW) V-Twin engine</li>
<li>48- and 54-in. (122- and 137 cm) forged Accel Deep™ Mower Decks available</li>
<li>20-inch (50.8 cm) high-back custom-tailored seat and standard rear hitch</li>
<li>3-year/200-hour bumper-to-bumper warranty**</li>
</ul>


Z330M ZTrak™ Mower with 48-in. Deck

<ul>
<li>AutoConnect™ deck compatible for deck attach/detach in seconds</li>
<li>Cab or Open Station configuration available</li>
<li>PowrReverser™ or E-hydro transmission with Twin Touch™ pedals</li>
</ul>


3039R Compact Utility Tractor

<ul>
<li>48-inch (122-cm) floating mower deck</li>
<li>Powerful 19 hp (14.2 kW) V-twin engine</li>
<li>Self-propelled hydrostatic drive system</li>
<li>Easy-to-use controls for operator comfort and convenience</li>
</ul>


W48R Commercial Walk-Behind Mower

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 125 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5125r-tractor

5125R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 115 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5115r-tractor

5115R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 100 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5100r-tractor

5100R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>Engine Power: 90 hp</li>
<li>Easy to use transmission</li>
<li>NEW integrated technologies (JDLink™, AutoTrac™)</li>
<li>NEW optional suspended front axle</li>
</ul>


5090r-tractor

5090R Utility Tractor

<p><strong class="text_large">Key Features</strong></p>
<ul>
<li>PowrQuad PLUS 16F/16R or Powr8 32F/16R transmission options</li>
<li>Climate-controlled cab</li>
<li>Hitch lift capacity of 6,970 lbs. with an option of 7,860 lbs.</li>
<li>Integrated AutoTrac™ guidance</li>
</ul>


5115m-powrquad-pluspowr8-utility-tractor

5115M Utility Tractor

<div class="key_features"><strong class="text_large">Key Features</strong></p>
<ul>
<li>PowrQuad PLUS 16F/16R or Powr8 32F/16R transmission options</li>
<li>Climate-controlled cab</li>
<li>Hitch lift capacity of 6,970 lbs. with an option of 7,860 lbs.</li>
<li>Integrated AutoTrac™ guidance</li>
</ul>
</div>


5100m-powrquad-pluspowr8-utility-tractor

5100M Utility Tractor

Rippers

Semi-Mounted Rotary Rakes

Horizontal Fold Disc Mowers

Front Mounted Disc Mowers

Professional-Duty Roadside Mowers

Vari-Manager Series

Vertical Fold Disc Mowers

Landscape and Estate Shredders

Trailed Round Bale Wrappers

Trailed Square Bale Wrappers

Download Product Brochure

<p>Models 17G, 26G, 30G, 35G, 50G, and 60G with operating weights 3,800 &#8211; 13,500 lbs</p>


CXCA: Compact Excavator

<div>
       <h5>Overview</h5>

       <p>Think of changing attachments as a system. With the quick connect auxiliary couplers and the manual quick coupler for attachments, changeover to the next attachment is quick with minimal downtime.  When using hydraulic attachments, the auxiliary selector valve lets you quickly choose between attachment one-way and two-way flows.</p>
       <h5>Benefits</h5>

       <ul>
        <li>The standard selector valve allows the connection of two attachments at the same time. Supply/return oil can be diverted from one to the other by changing the valve position.</li>
        <li>John Deere augers can be equipped with numerous sizes of rock, heavy-duty, standard, and tree/shrub bits.</li>
        <li>Hydraulic hammers are perfect for quarry or trench work and concrete removal. Use them to break rock, concrete flatwork, and walls; around rebar; or to a precut line.</li>
        <li>The clamp, sometimes referred to as a thumb, can be used in conjunction with buckets. This aids in the removal of material if it is bulky and does not fit into the bucket completely.</li>
       </ul>
       <h5>Additional details</h5>

       <ul>
        <li>Compact excavators use common buckets and attachments that customers who own other John Deere compact machines may already have in their fleets.</li>
       </ul>
      </div>

Change attachments quickly with mechanical coupler

<div>
       <h5>Overview</h5>

       <p>Make a sizable impact on your productivity and profitability with the backfill blade. The backfill blade can be used to level and backfill trenches. It is the same width as the undercarriage width. The blade can add versatility by using the blade and bucket to clamp and carry pipe, rocks, or other bulky items. A bolt-on cutting edge is available as optional equipment for the backfill blade.</p>
       <h5>Benefits</h5>

       <ul>
        <li>Backfill blade adds versatility, enabling these compact excavators to grade and fill.</li>
        <li>Provides extra stability with attachments or when working on uneven terrain.</li>
       </ul>
      </div>

Increase efficiency with standard backfill blade

<div>

       <h5>Overview</h5>

       <p>Low daily operating costs with improved fuel economy and economy/power modes. These machines have improved fuel economy over the previous series.</p>
       <h5>Benefits</h5>

       <ul>
        <li>Auto-idle automatically reduces engine speed when hydraulics aren’t in use.</li>
        <li>Auto shutdown further conserves precious fuel.</li>
        <li>Power/economy modes optimize power for digging applications and significantly improve fuel efficiency.</li>
       </ul>
      </div>

Fuel-Savings with Auto-Idle And Economy Work Mode

<div>

       <h5>Overview</h5>

       <p>With large entryways and virtually unrestricted sightlines, the G-Series’ spacious operator stations deliver all the comfort, convenience, and visibility operators need to bring out their best. Their ergonomically designed operator stations are built to accommodate even larger operators.</p>
       <h5>Benefits</h5>

       <ul>
        <li>Spacious operator stations have wide entryways, making entrance and exit easier than ever</li>
        <li>Optional cab’s front glass is expansive, for exceptional visibility and higher productivity</li>
        <li>An adjustable work light at the top left of the canopy or cab increases job efficiency at night</li>
        <li>A slip resistant entry is provided for safe access to the operator’s seat</li>
        <li>Foldable travel pedals increase foot and leg room</li>
        <li>A suspension seat is standard from the factory</li>
        <li>All controls are conveniently located to the operator’s right include the optional radio.</li>
        <li>Pilot control levers enable an operator to control the boom, bucket, arm, and swing functions.</li>
        <li>Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear and the operator comfortable</li>
        <li>Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern</li>
       </ul>
       <h5>Additional Details</h5>

       <ul>
        <li>All canopies and cabs meet the following safety requirements:
         <ul>
          <li>Tip Over Protective Structure (TOPS), Roll Over Protective Structure (ROPS), and Falling Object Protective Structure (FOPS)</li>
         </ul></li>
        <li>The optional cab comes standard with a heater</li>
        <li>Both the cab and canopy units come with a step area for entry and exit</li>
       </ul>

       <ul>
        <li>An auto speed change system for high speed travel is employed.</li>
        <li>The turtle speed lock switch will keep the machine in low when propelling.</li>
        <li>The rabbit speed lock will always keep the unit in the higher mode unless a large load is applied to travel like steering changes.</li>
        <li>The machine will then automatically shift to low but return to high when the load is reduced.</li>
       </ul>
      </div>

A More Spacious Cab with A Wider Entryway And Unsurpassed Visibility

<div>

       <h5>Overview</h5>

       <p>Extended maintenance intervals enable the machine to remain working for longer periods of productive work before the need to service. This greatly increases uptime and productivity of the unit. Hinged door provides wide-open access to the side-by-side oil cooler and radiator. Cooler design resists trash buildup and allows easier core cleanout. Access is quick and convenient.</p>
       <h5>Benefits</h5>

       <ul>
        <li>Extended oil change and greasing intervals contribute to low daily operating costs.</li>
        <li>Oil impregnated bushings allow the unit to extend grease intervals. Not only does it increase the time between greasing of the unit, this greatly reduces the chances of a problem occurring due to improper maintenance causing downtime to the operation.</li>
        <li>The additional service door allows the operator and technician better access to components during daily service checks and routine maintenance for improved uptime.</li>
        <li>No aftertreatment devices needed reducing maintenance and expense.</li>
        <li>Parts and service are available at over 1,400 John Deere dealers throughout North America.</li>
        <li>Wet-disc swing brake provides long-term maintenance-free performance.</li>
       </ul>
       <h5>Additional Details</h5>

       <ul>
        <li>When maintenance or repair is required, simply use the tilt tool to raise the cab forward to an industry leading 50 degrees. This allows easy access to many components under the floor.</li>
       </ul>
      </div>

Ground Level Daily Service with Extended Maintenance Intervals

<div>

       <h5>Overview</h5>

       <p>The X-frame undercarriage is similar to that of larger excavators, and it is designed to shed dirt and debris from the track frames. A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.</p>
       <h5>Benefits</h5>

       <ul>
        <li>Track sag adjustment is conveniently located in the center of the frame to maintain proper track tension and maximize undercarriage life.</li>
       </ul>
       <h5>Additional Details</h5>

       <ul>
        <li>A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.</li>
       </ul>

       <ul>
        <li>Tie-downs are provided so loading and transporting of the machine can be done quickly.</li>
        <li>All models have a rear tie down on the rear of the X-frame</li>
       </ul>

       <ul>
        <li>Rubber tracks are standard equipment.
         <ul>
          <li>Steel track and rubber crawler pads are optional.</li>
         </ul></li>
       </ul>
      </div>

Specifications
Emission Rating	Tier 4 / Stage IV
Engine Manufacturer	Yanmar
Number Of Cylinders	3
Displacement, ltr (Inches³)	1.642 (100.2)
Rated speed, rpm	2400
Engine Output - Net, kW (hp)	17.4 (23)
Number Of Carrier Rollers - Each Side	1
Number Of Track Rollers - Each Side	4
Track Shoe Width, mm (inches)	300 (12)
Transport Length Mono Boom, mm (ft/in)	4450 (14 ft 7 in)
Transport Height - Maximum, mm (ft/in)	2480 (8 ft 2 in)
Overall Undercarriage Width, mm (ft/in)	1550 (5 ft 1 in)
Track Length On Ground, mm (ft/in)	1660 (5 ft 5 in)
Overall Undercarriage Length, mm (ft/in)	2110 (6 ft 11 in)
Tailswing Radius, mm (ft/in)	775 (2 ft 7 in)
Ground Clearance, mm (inches)	280 (11)
Dozer Blade Height, mm (inches)	373 (15)
Dozer Blade Width, mm (ft/in)	1740 (5 ft 9 in)
Width over fixed tracks, mm (ft/in)	1550 (5 ft 1 in)
Track Gauge, mm (ft/in)	1250 (4 ft 1 in)
Digging Reach - Mono Boom, mm (ft/in)	4890 (16 ft 1 in)
Dig Height - Mono Boom, mm (ft/in)	4620 (15 ft 2 in)
Dump Height - Mono Boom, mm (ft/in)	3200 (10 ft 6 in)
Dig Depth - Mono Boom, mm (ft/in)	2790 (9 ft 2 in)
Standard Dipper, mm (ft/in)	1170 (3 ft 10 in)
Fuel Tank, ltr (gallons (US))	42 (11.1)
Hydraulic Tank, ltr (gallons (US))	43 (11.4)
Number Of Batteries	1
Voltage, V	12
Ground Bearing Pressure, kPa (PSI)	28 (4.1)
Swing Speed, rpm	9.1
Travel Speed - High, kph (mph)	4.3 (2.7)
Total Flow, lt/min (gallons (US) / min)	76.8 (20.2)
